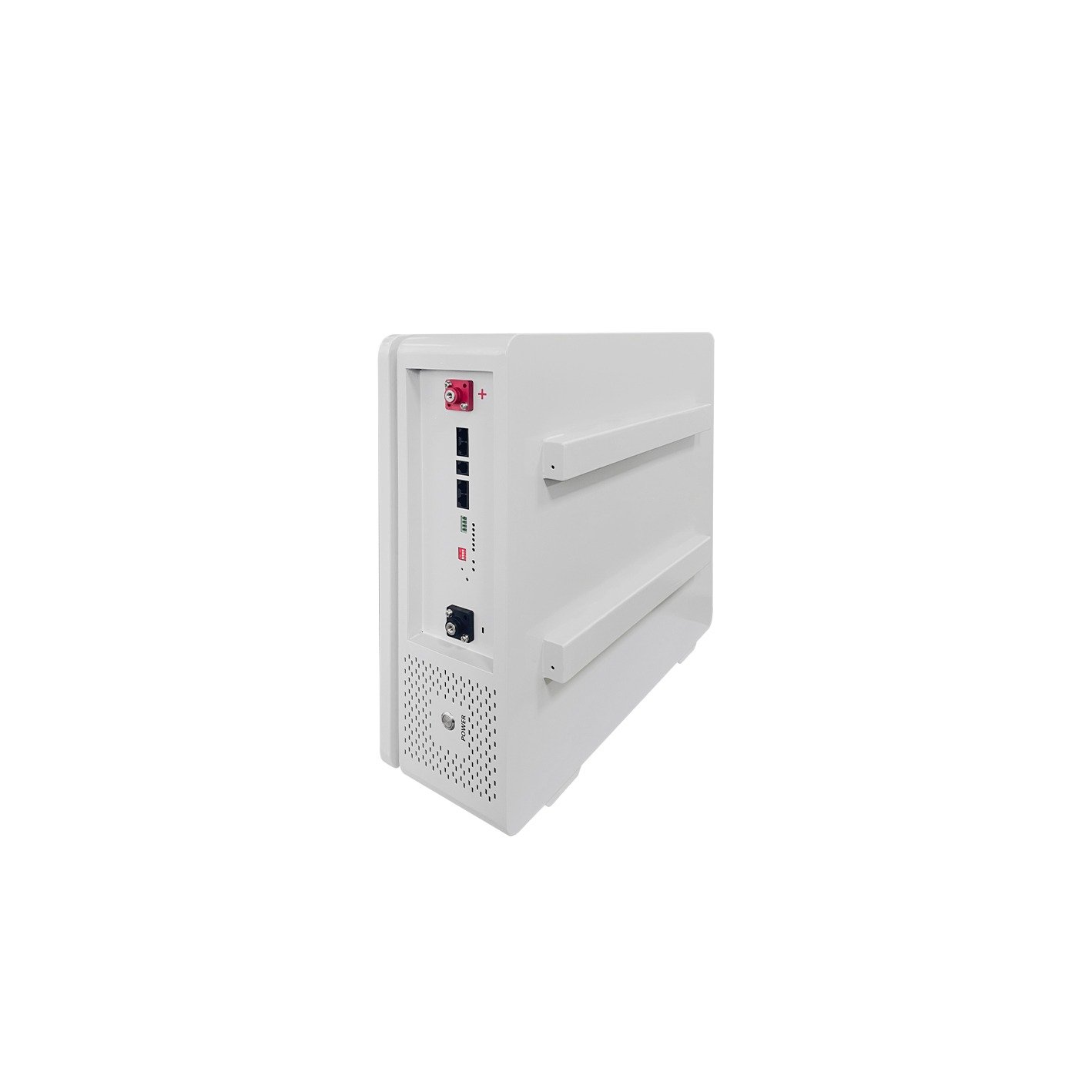

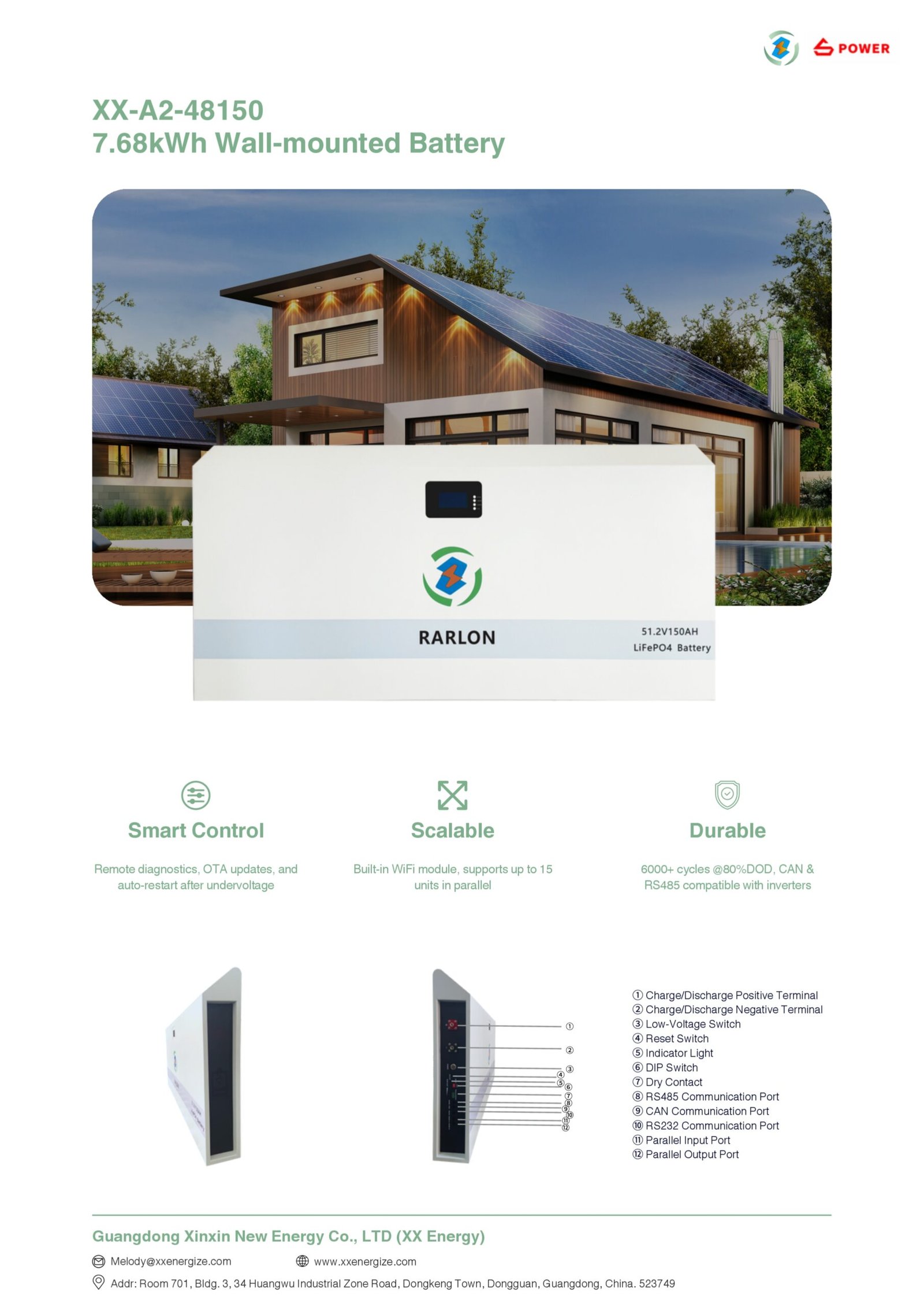

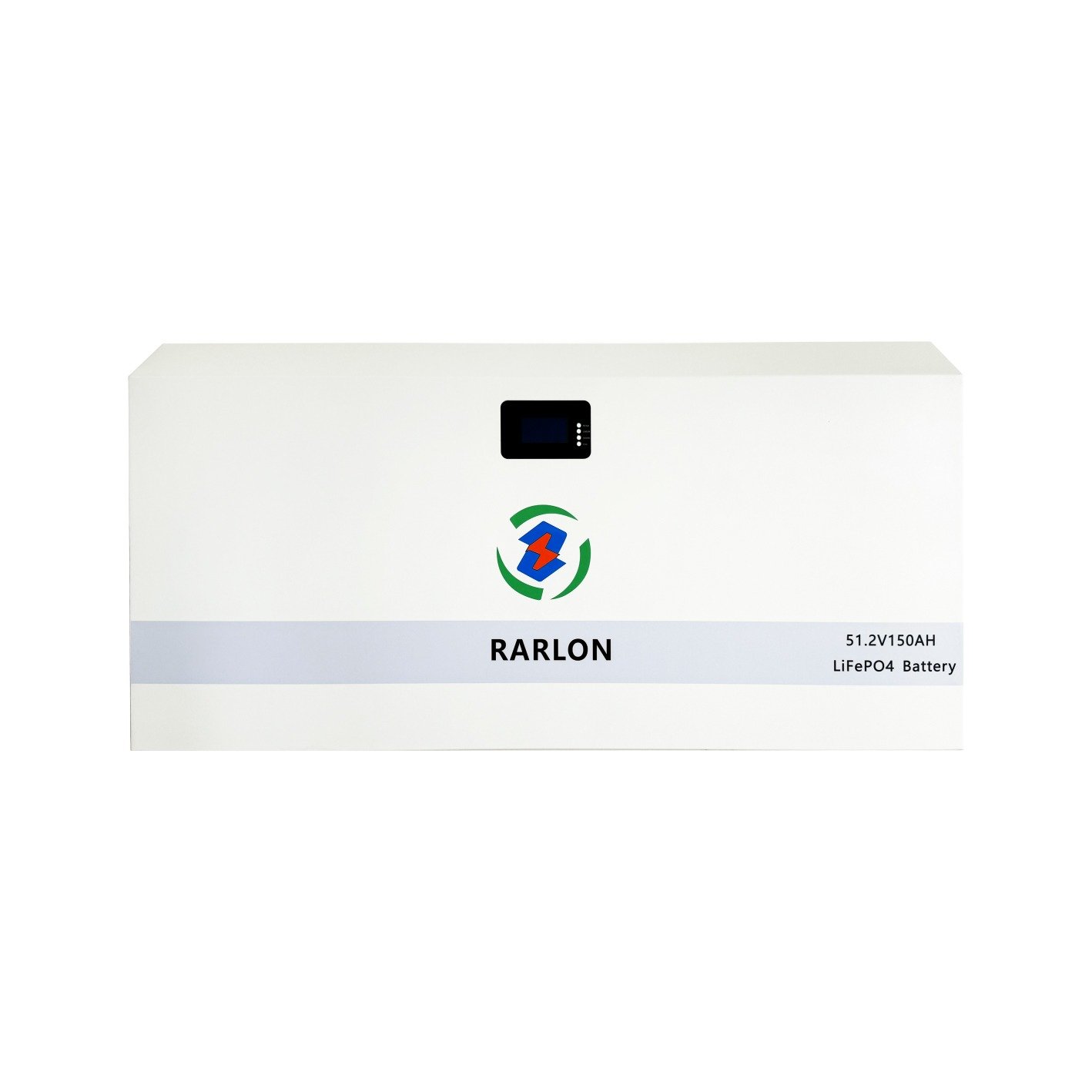

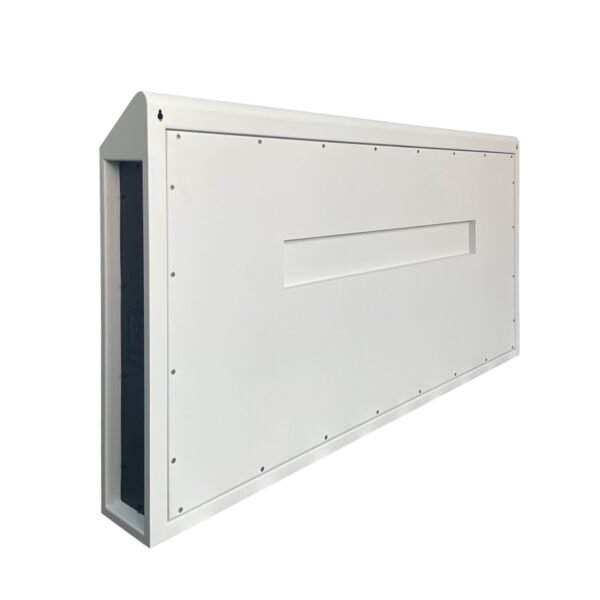

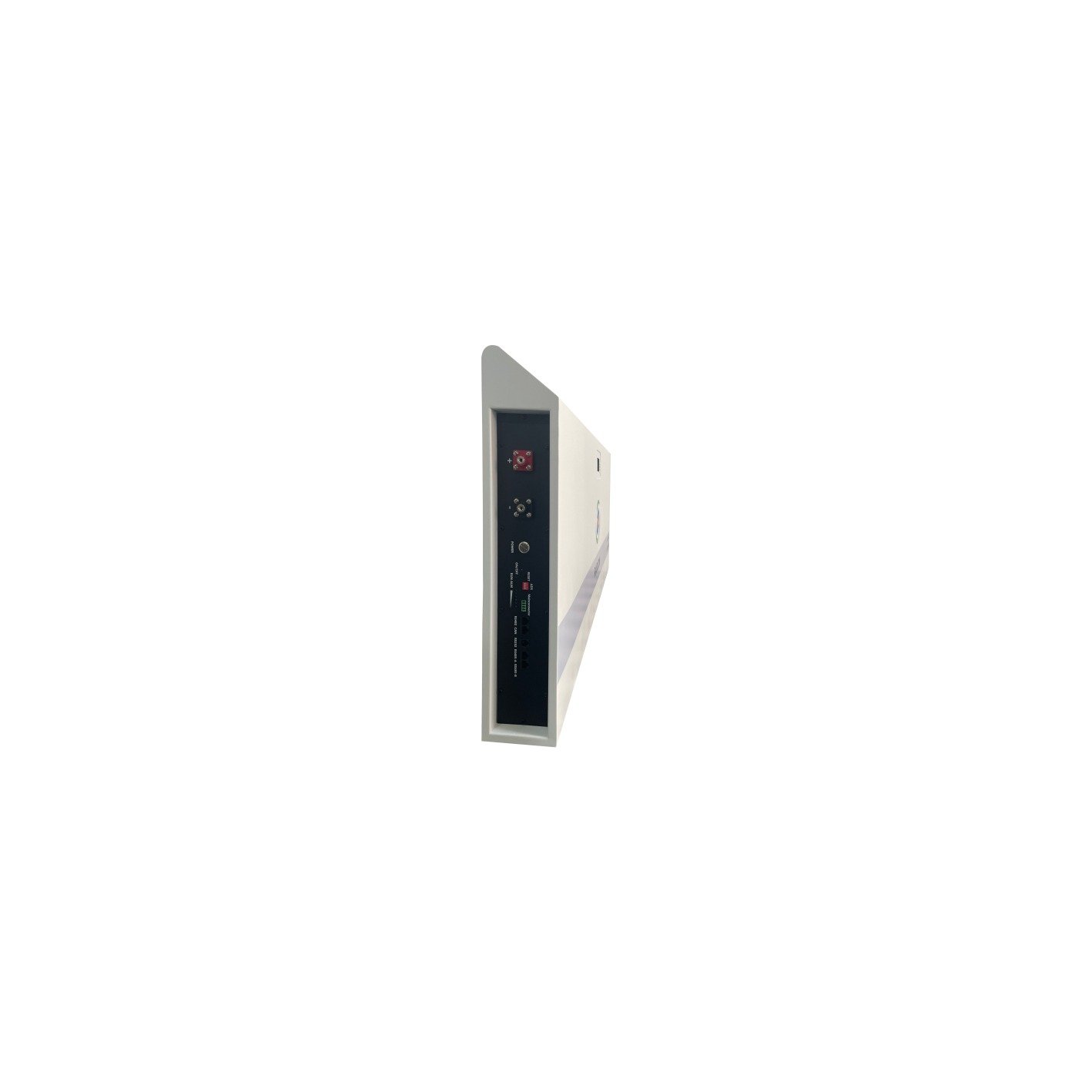

Residential ESS, Wall-mounted Series

XX-A2-48150

Powerful, space-saving energy storage for home and business. This 51.2V 150Ah battery features an ultra-slim wall-mounted design and uses high-safety blade cells for improved performance and durability. Ideal for solar systems and backup power — sleek, safe, and built to last.

Description

Product Series	Wall-mounted Series
Model No.	XX-A2-48150
System Parameters
Battery Type	LiFePO4
Nominal Voltage (V)	51.2V
Nominal Capacity (Ah)	150Ah
Nominal Energy (kWh)	7.68kWh
Charge Cut-off Voltage (V)	58.4V
Recommend Charge Current (A)	50A
Max. Charge Current(A)	150A
Recommend Discharge Current (A)	100A
Max. Discharge Current(A)	150A
Discharge Cut-off Voltage (V)	44.0V
Communication	CAN/RS485/RS232
Protection Function	Overvoltage/Undervoltage/Overtemperature/Low Temperature/Overcurrent/Short Circuit Protection
Expansion	UP to 15 units in parallel
Cycle Life	6000 cycles
Warranty	5 years
Dimensions （LWH）	1145574119mm
Packing Dimension	1185620285mm
Net Weight	75kg
Gross Weight	95.6kg
Working Conditions
Working Temperature	Charge: 0~45℃ @ 60±25% Discharge:-20~60℃ @ 60±25%
Storage Temperature	-5~35℃
Humidity	5%~95%
Cooling Method	Natural Cooling
Protection Level	IP20
Altitude (m)	2000m
Certificate	MSDS, UN38.3
