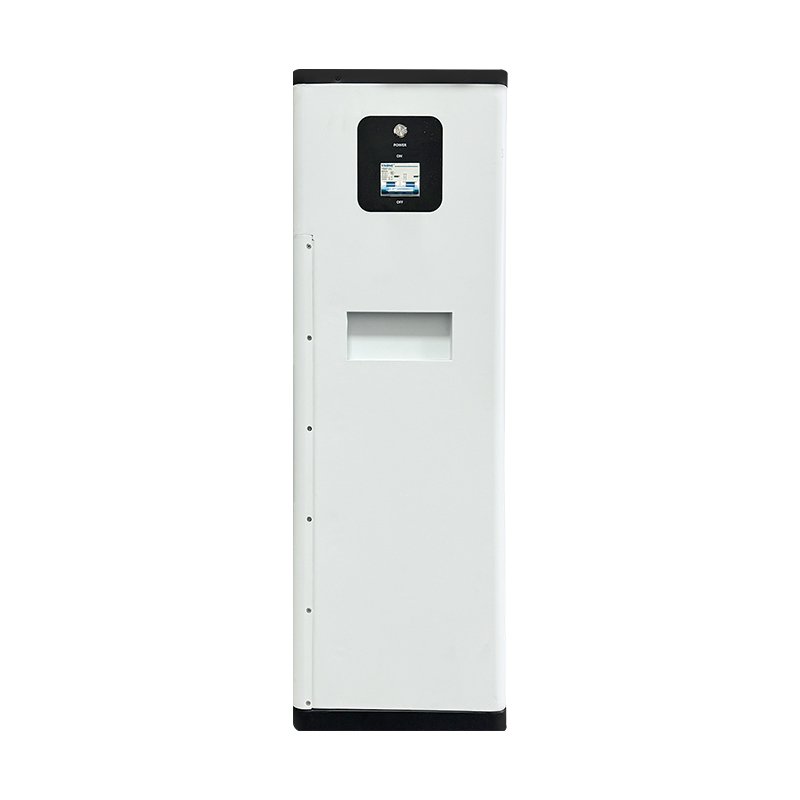

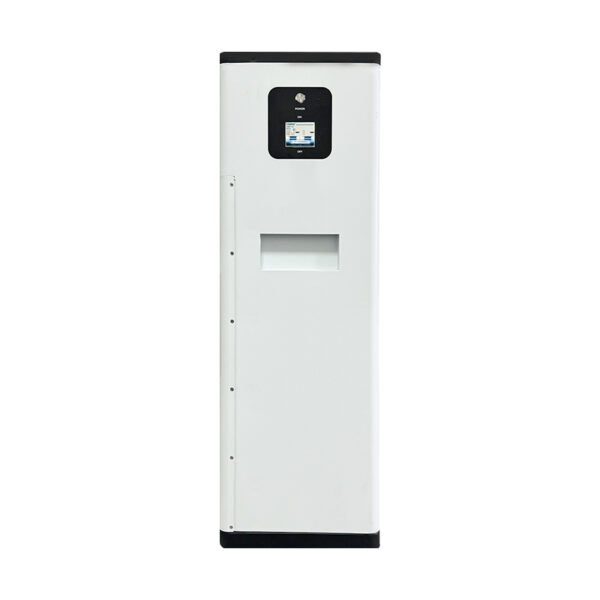

Floor-standing Series, Residential ESS

XX-A3-48200 (without wheels)

A compact 51.2V 200Ah lithium battery built for reliable home or business energy storage. The floor-standing cabinet includes a smart touchscreen for easy status monitoring. No wheels — stable, space-efficient, and ideal for fixed indoor installations.

Description

Product Series	Floor-standing Series
Model No.	XX-A3-48200 (without wheels)
System Parameters
Battery Type	LiFePO4
Nominal Voltage (V)	51.2V
Nominal Capacity (Ah)	200Ah
Nominal Energy (kWh)	10.24kWh
Charge Cut-off Voltage (V)	58.4V
Recommend Charge Current (A)	60A
Max. Charge Current(A)	200A
Recommend Discharge Current (A)	150A
Max. Discharge Current(A)	200A
Discharge Cut-off Voltage (V)	44.0V
Communication	CAN/RS485/RS232
Protection Function	Overvoltage/Undervoltage/Overtemperature/Low Temperature/Overcurrent/Short Circuit Protection
Expansion	UP to 15 units in parallel
Cycle Life	6000 cycles
Warranty	5 years
Dimensions （LWH）	500250915mm
Packing Dimension	560310975mm
Net Weight	89kg
Gross Weight	95.6kg
Working Conditions
Working Temperature	Charge: 0~45℃ @ 60±25% Discharge:-20~60℃ @ 60±25%
Storage Temperature	-5~35℃
Humidity	5%~95%
Cooling Method	Natural Cooling
Protection Level	IP20
Altitude (m)	2000m
Certificate	MSDS, UN38.3
