XX-A6-24300

XX-A6-24300 - Image 2

Fixed All-in-One ESS, Residential ESS

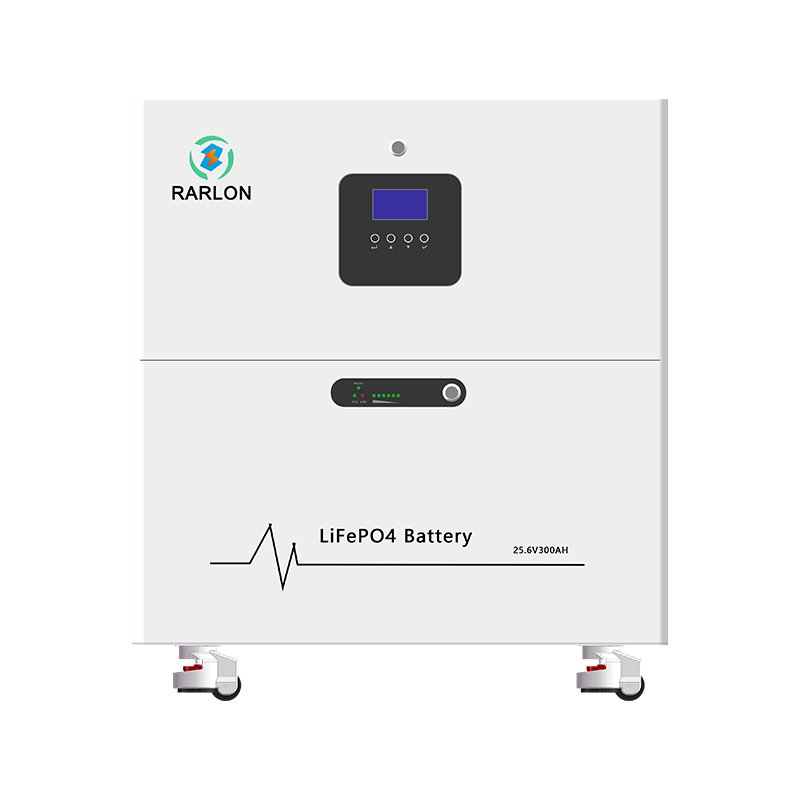

XX-A6-24300

Integrated energy storage system combining LiFePO₄ batteries and a high-efficiency inverter in a single cabinet. Equipped with wheels for easy relocation and installation.

Model No.: XX-A6-24300
• 7.68kWh | 25.6V | 300Ah
• Built-in 3.6kW pure sine wave inverter
• Peak efficiency: 90%–93%
• AC input/output: 230V, 50/60Hz

Ideal for residential backup power and small commercial applications.
Easy to move, simple to install, all-in-one convenience.

Description

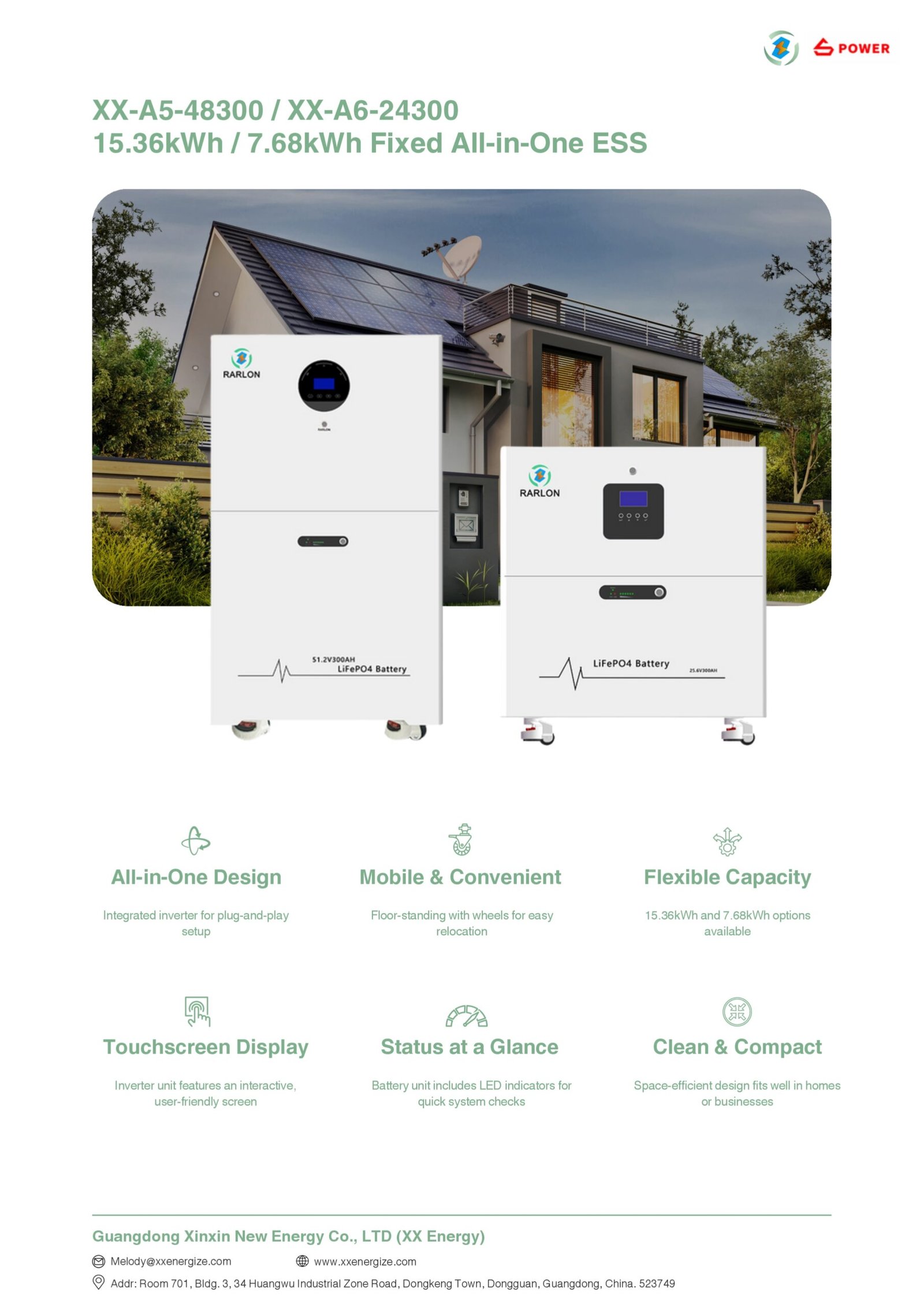

Product Series	Fixed All-in-One ESS

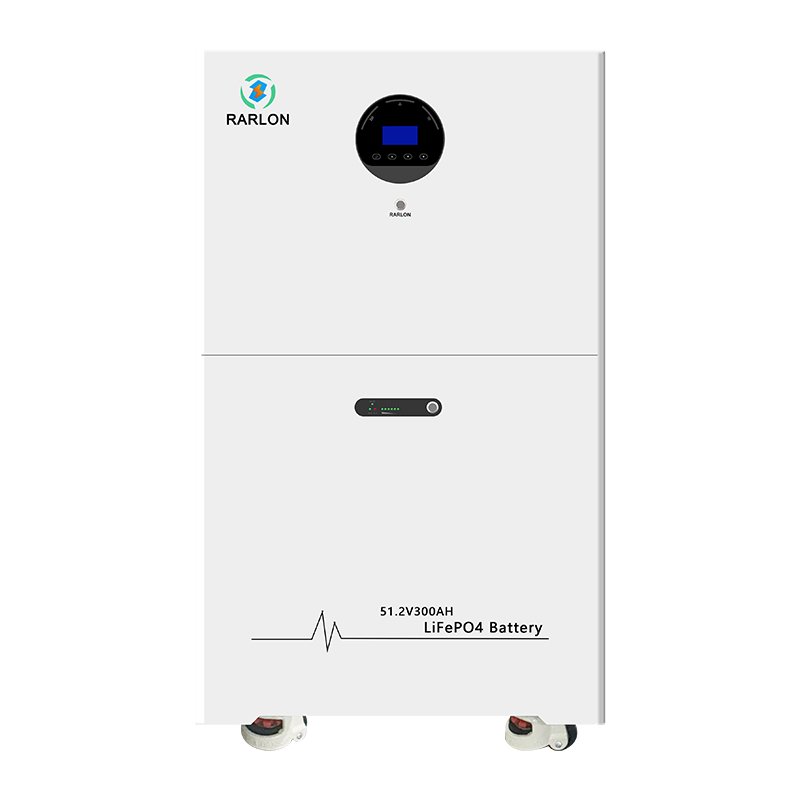

Model No.	XX-A5-48300	XX-A6-24300
Inverter Parameters
Rated Output Power	6kW	3.6kW
Waveform	Sine wave	Sine wave
AC Output Voltage Regulation (battery mode)	230V (alternating current ±5%）	230V (alternating current ±5%）
Inverter Efficiency	90%~93% (peak)	90%~93% (peak)
AC Input Voltage	230V (alternating current）	230V (alternating current）
Max. AC Input Voltage	280V	280V
Frequency	50/60Hz	50/60Hz
Battery Parameters	Battery Parameters	Battery Parameters
Battery Type	LiFePO4	LiFePO4
Nominal Voltage (V)	51.2V	25.6V
Nominal Capacity (Ah)	300Ah	300Ah
Nominal Energy (kWh)	15.36kWh	7.68kWh
Charge Cut-off Voltage (V)	58.4V	20.92V
Recommend Charge Current (A)	60A	75A
Max. Charge Current(A)	120A	150A
Recommend Discharge Current (A)	60A	75A
Max. Discharge Current(A)	120A	150A
Discharge Cut-off Voltage (V)	44.0V	20V
Communication	USB/WiFi	USB/WiFi
Protection Function	Overvoltage/Undervoltage/Overtemperature/Low Temperature/Overcurrent/Short Circuit Protection
Expansion	/	/
Cycle Life	6000 cycles @80% DOD	6000 cycles @80% DOD
Warranty	5 years	5 years
System Parameters
Dimensions （LWH）	7002801207mm	565450646mm
Packing Dimension	1267760340mm	625510706mm
Net Weight	138.6kg	80.6kg
Gross Weight	156.6kg	98.6kg
Working Temperature	Charge: 0~45℃ @ 60±25% Discharge:-10~60℃ @ 60±25%	Charge: 0~45℃ @ 60±25% Discharge:-10~60℃ @ 60±25%
Storage Temperature	-5~35℃	-5~35℃
Humidity	5%~95%	5%~95%
Cooling Method	Natural Cooling	Natural Cooling
Protection Level	IP20	IP20
Altitude (m)	2000m	2000m
Certificate	MSDS, UN38.3	MSDS, UN38.3
