XX215KWH

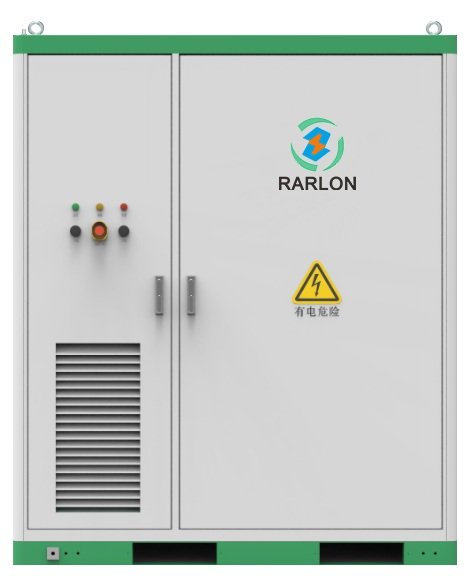

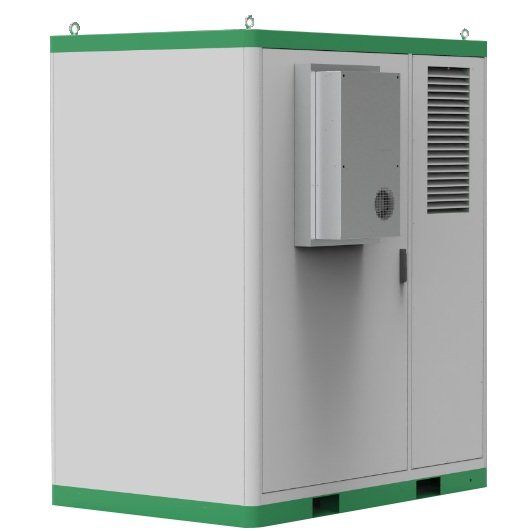

215kWh Liquid-Cooled ESS Cabinet
High-voltage, all-in-one energy storage system built with LiFePO₄ cells, designed for commercial and industrial use. Features 768V, 280Ah, and a total capacity of 215kWh, with integrated 100kW inverter and advanced liquid cooling for enhanced performance and safety.

6000-cycle life, 5-year warranty
Supports CAN, RS485, RS232, Ethernet
IP54 protection, fire suppression optional
Rated for up to 3000m altitude

Ideal for peak shaving, backup power, and energy management in demanding environments.

Model No.		XX215KWH
Battery	Battery Type	LiFePO4
	Nominal Voltage (V)	768V
	Nominal Capacity (Ah)	280Ah
	Nominal Energy (kWh)	215kWh
	Battery Cell	3.2V280Ah
	Energy per Battery Module (kWh)	43kWh
	Battery Pack Configuration	240S1P
	Number of Strings	1
	Working Voltage Range	672~876V
	Max. Charge Rate (kVA)	1000kVA
AC (online)	Rated AC Output Power	100kW
	Rated Current	145A
	Rated Grid Voltage	400V
Environment	Grid Frequency	50Hz/60Hz
Environment	RHDV (Linear load)	≤3%
Effciency	Max. Effciency	90%
General Data	Communication Interface	Ethernet/CAN/RS485
	Protocol (optional)	Can/RS485/RS232
	Cycle Life	6000 cycles
	Warranty	5 years
	Dimensions （LWH）	130814522200mm
	Net Weight	2420kg
	Fire Extinguishing System	Gas Aerosol, Combustible gas detector (optional)
	Working Temperature	Charge:0-50℃ Discharge: -15-50℃
	Humidity	0-95% (non-condensing)
	Cooling Method	Liquid Cooling
	Protection Level	IP54
	Altitude (m)	3000m (＞2000m derated)
